Characteristics:
●Excellent physical and electrical properties
●Good extrusion performance, processing performance, smooth extrusion surface, moderate plasticity
●Through ROHS and SVHC testing, etc.
Main Applications:

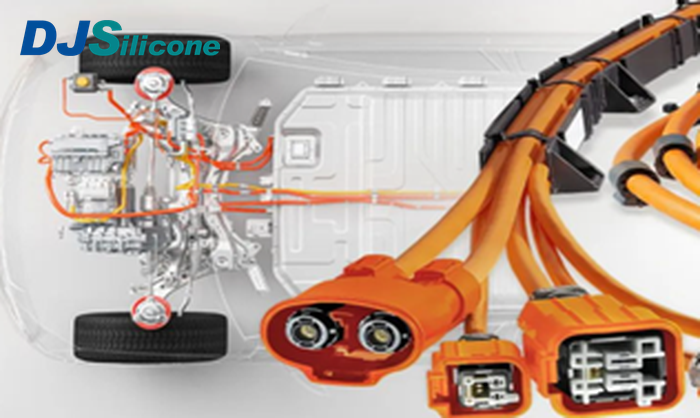

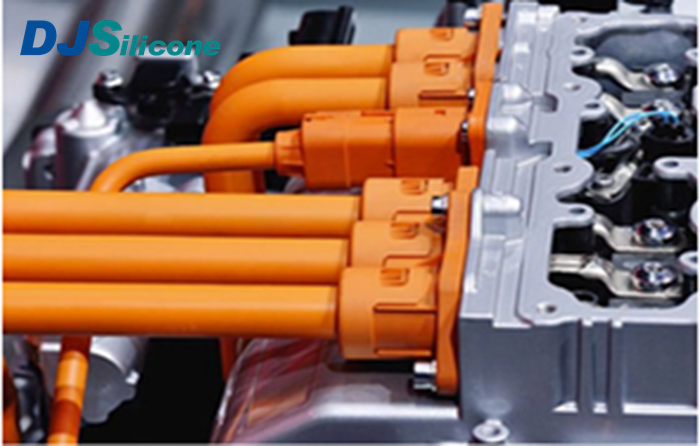

●Used in new energy automobile cable, extruded wire insulation layer, etc.
Typical Data：
|
Properties |
Test Method |
|||||||||
|
NE-9200-60 |
NE-9200-70 |
NE-9600- 70 |
NE-9600-70 |
NE-9201-60 |
NE-9201-70 |
NE-9601-60 |
NE-9601-70 |
|||
|
Appearance |
Transparent, no obvious extraneous matter. |
Light yellow, no obvious extraneous matter. |
Visual Inspection |
|||||||
|
Length Physical performance |
Hardness, Shore A |
55-65 |
65-75 |
55-65 |
65-75 |
55-65 |
65-75 |
55-65 |
65-75 |
ASTM D2240 |
|
Tensile Strength, MPa, ≥ |
9.5 |
9.5 |
9.0 |
9.0 |
9.5 |
9.5 |
9.0 |
9.0 |
||
|
Elongation at Break, %, ≥ |
600 |
550 |
550 |
500 |
600 |
550 |
550 |
500 |
||
|
Tear Strength, Die C kN/m, ≥ |
40 |
40 |
40 |
40 |
40 |
40 |
40 |
40 |
ASTM D624 |
|
|
Tear Strength, Trouser type, kN/m, ≥ |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
15 |
||
|
Heat- aging 200*10days |
Tensile Strength, MPa, ≥ |
/ |
/ |
/ |
/ |
7.5 |
7.5 |
7.0 |
7.0 |
ASTM D412 |
|
Elongation at Break, %, ≥ |
/ |
/ |
/ |
/ |
200 |
200 |
200 |
200 |
||
|
Volume resistivity,Ω·cm, ≥ |
IEC60093 |
|||||||||
|
Dielectric strength, kV/mm, ≥ |
24 |
24 |
22 |
22 |
24 |
24 |
22 |
22 |
IEC60243 |
|
● Physical data in the above table is for reference only.
● Vulcanization condition: 120℃*10Min.
● Two-component platinum, additive amount of component A (0.4-0.6%), component B (1.1-1.2%).
●The supplied test report is obtained by the Quality Inspection Department with the curing conditions and testing method of the company; due to the difference of curing conditions and testing method, we can’t guarantee that both parties obtain the same testing result, and we suggest that users should use the test data obtained under their own testing conditions as the reference for service performance. All the above performance data and application recommendations are only a reference for use on the service performance of product, instead of a guarantee on the effectiveness or general applicability of our products under a certain application.
